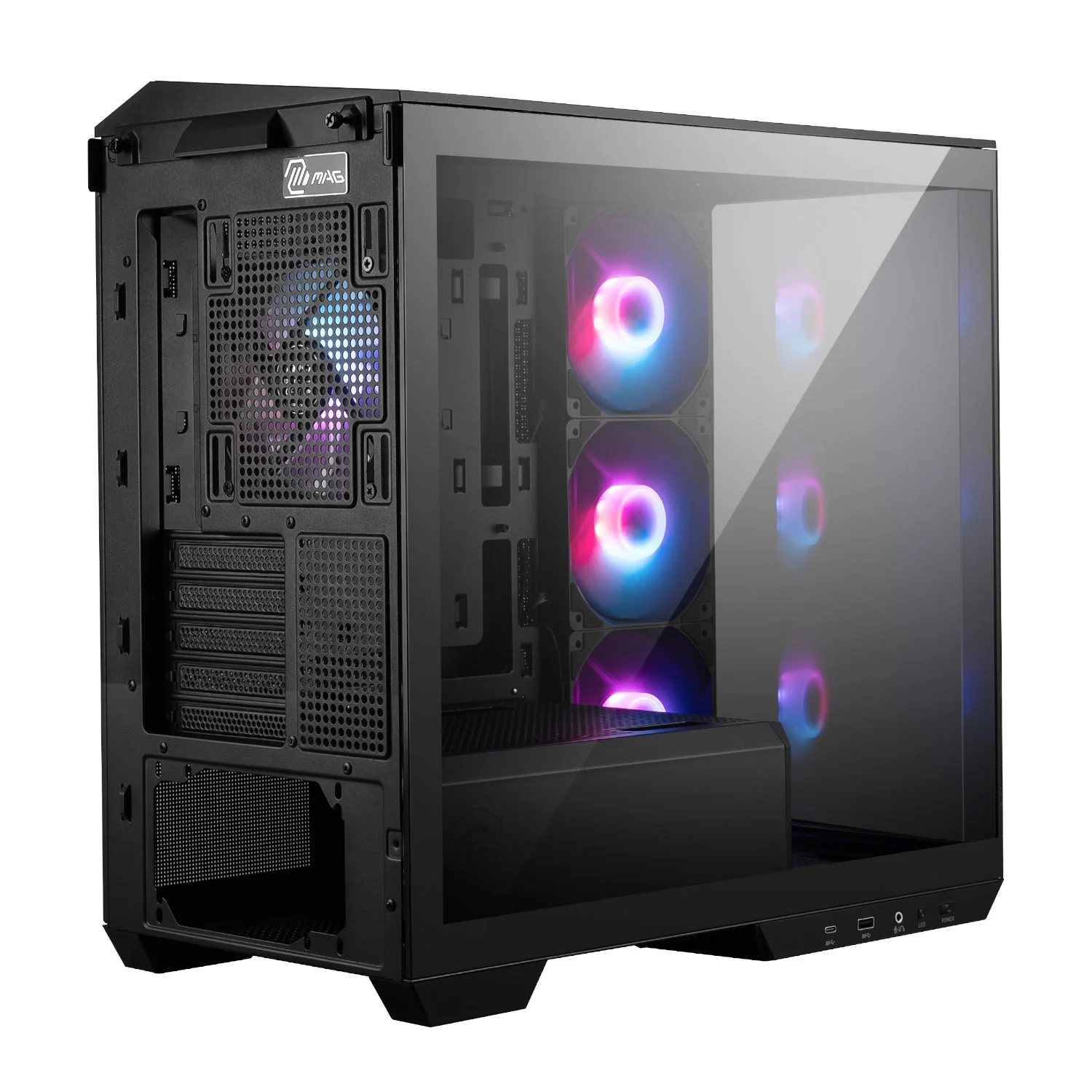

MSI MAG PANO M100R PZ M-ATX ARGB Gaming Chassis - Black

The MAG series fights alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. This versatile gaming chassis has many features that make the installation process all the easier.

To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, a 1-to-4 ARGB-PWM control board to let user organize cables easily.

Synergize the MAG PANO M100R PZ series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high-speed data transmission.

FEATURES:

• Micro-ATX Back-connect PROJECT ZERO motherboard supported


• Supports up to 360 mm AIO liquid cooler on the top


• 270-degree panoramic tempered glass


• Supports up to 10 x 120 mm system fans


• Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects


• The Magnetic Dust Filter at the bottom being easily removed for cleaning


• DIY Friendly cables make your DIY process easier and create more possibilities to your system

SPECIFICATIONS:

• Form Factor: Micro-ATX Mid Tower


• Motherboard Form Factor Support: Micro-ATX(Back-connect supported)/Mini-ITX


• I/O Ports: 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x Audio-Out / Mic-in, 1 x LED Switch Button, 1 x Power Button


• Drive Mount Support: 1 x 2.5”, 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)


• Expansion Slots: 5


• Maximum GPU Length: 390 mm


• Maximum CPU Cooler Height: 175 mm


• Power Supply Support: ATX


• Maximum PSU Length: 200mm


• Fan Size Support:



  • Top: 3 x 120 mm / 2 x 140 mm


  • Front: NA


  • Rear: 1 x 120 mm / 1 x 140 mm


  • Side: 3 x 120 mm


  • Bottom: 1 x 120 mm


  • PSU Shroud: 2 x 120 mm






• Pre-Installed Fan Size:



  • Front: 3 x 120 mm


  • Rear: 1 x 120 mm






• Pre-Installed Fan Type:



  • Front: 3 x ARGB Fan (Reverse-blade)


  • Rear: 1 x ARGB Fan






• Radiator Size Support:



  • Top: 120 / 240 / 360 mm


  • Front: NA


  • Rear: 120 / 140 mm


  • Side: NA


  • Bottom: NA






• Colour: Black


• Product Dimensions: 48.8 x 23.5 x 45.3 cm


• Product Weight: 8660g

WHAT'S IN THE BOX:

• MSI MAG PANO M100R PZ M-ATX ARGB Gaming Chassis - Black x1
